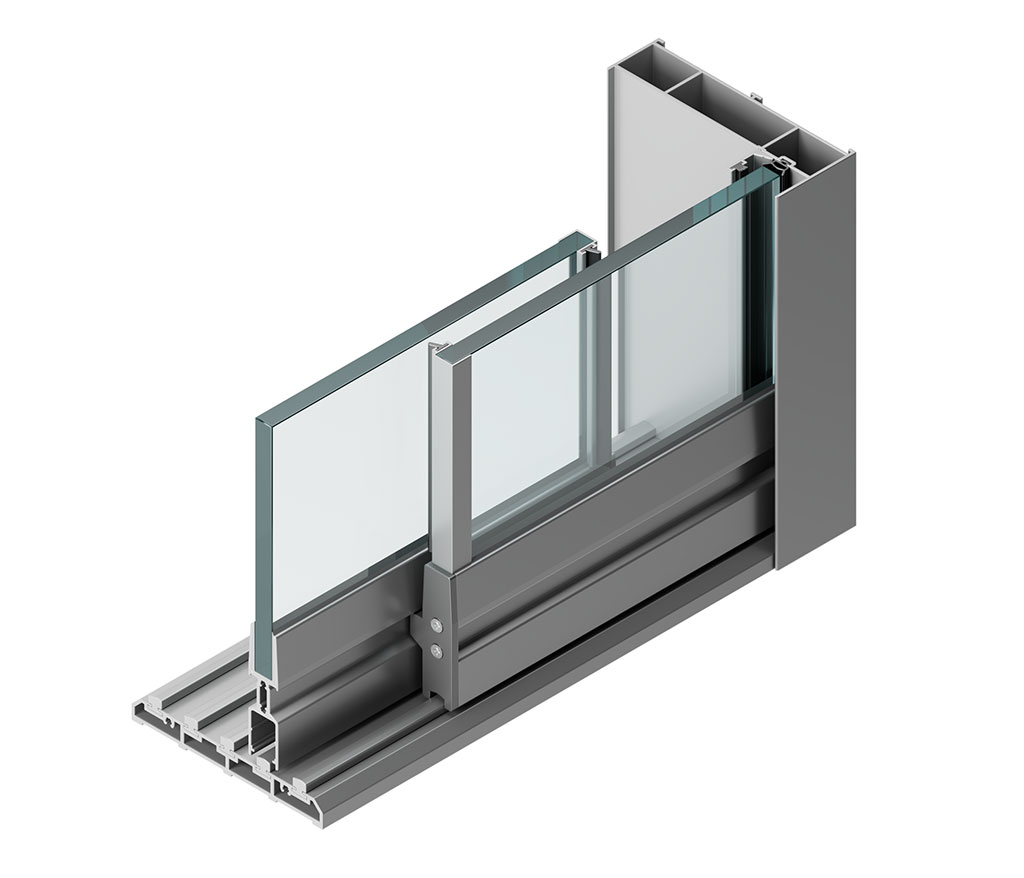

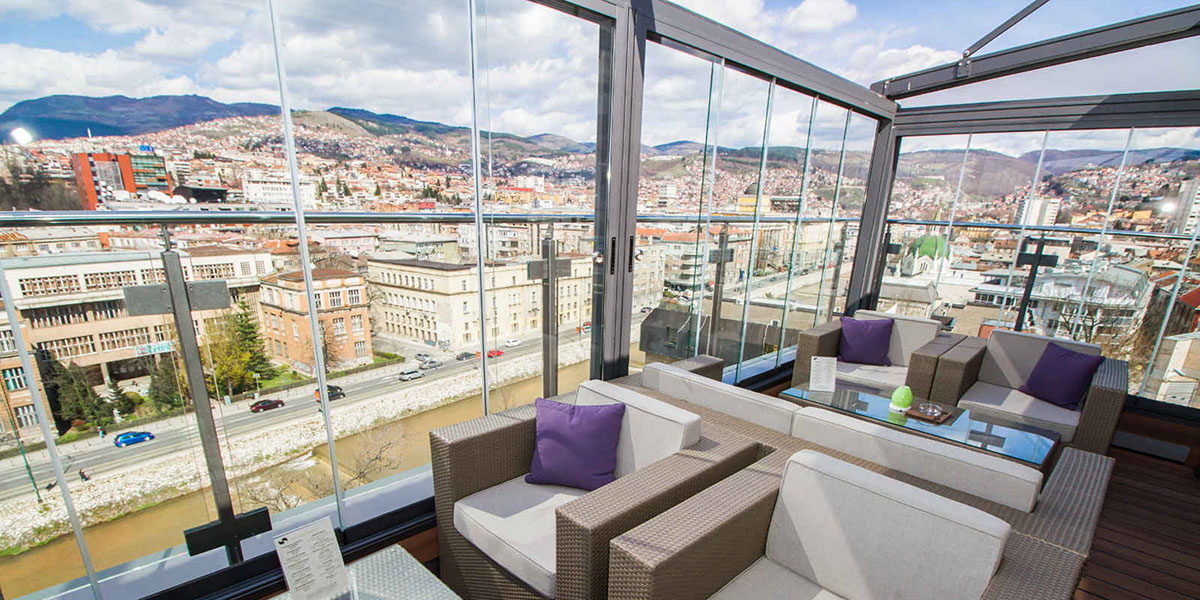

The FR 18 system is intended for glazing terraces, balconies and catering facilities and enables smooth enjoyment of the view. Possibility of performance with three and five wings, where one wing is always fixed while the other wings are put behind the first wing in the open position. The application of FR 18 enables greater flexibility in the use of space, more light in the interior and is a practical way to create new useful surfaces. By opening or closing the first sliding wing, the remaining wings are retracted thanks to the latch on the wings. Specially designed small wheels in the lower part of the wing allow quick and easy opening and closing of the wing.

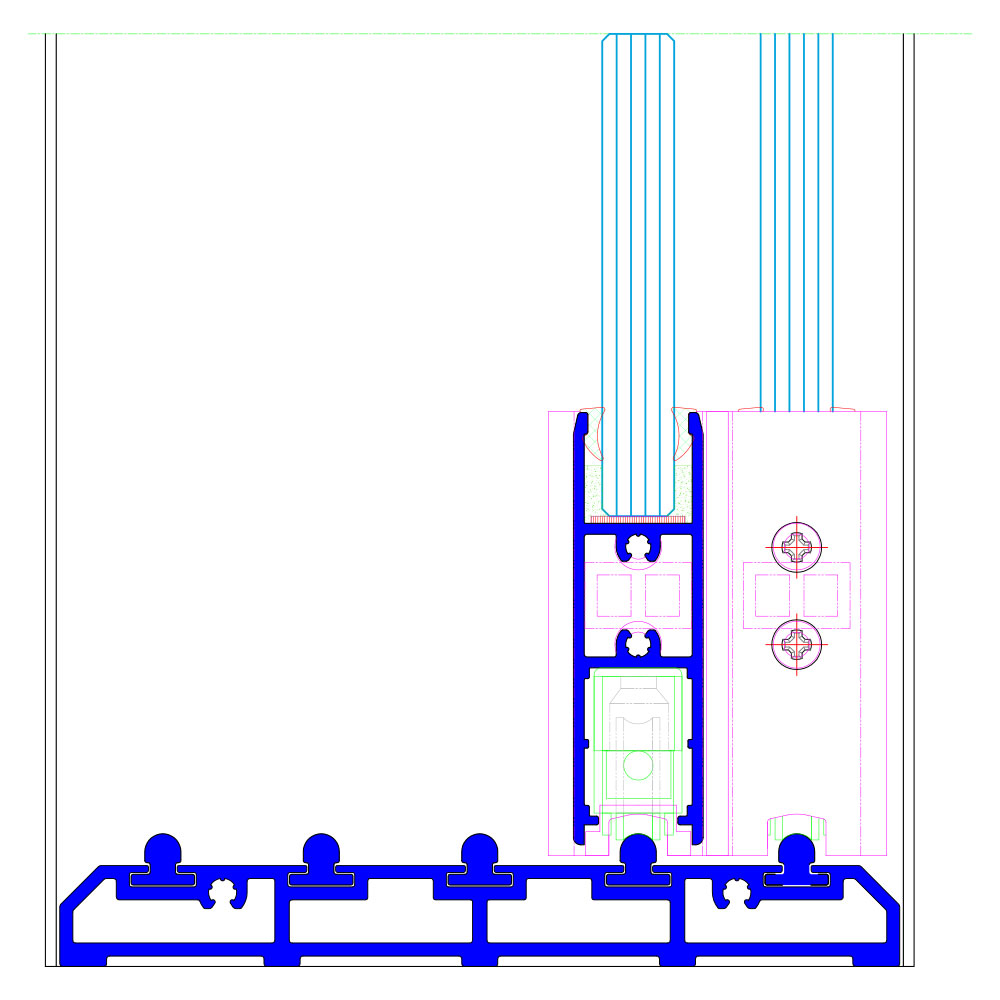

Technical characteristics of the system:

• frame depth: 76.5 mm (three wings) and 120 mm (five wings)
• wing depth: 18 mm
• depth of the filling: 55.2 (hardened laminated glass)
• max wing weight: 120 kg
• air-permeability: EN 12207
• watertightness: EN 12208
• resistance to wind: EN 12210
• noise protection: DIN 4109
• antiburglary EN 1627
• basic material: EN AW-6060
• sealing material: EPDM
• surface treatment: DIN 17611
• quality control: DIN EN ISO 9001
