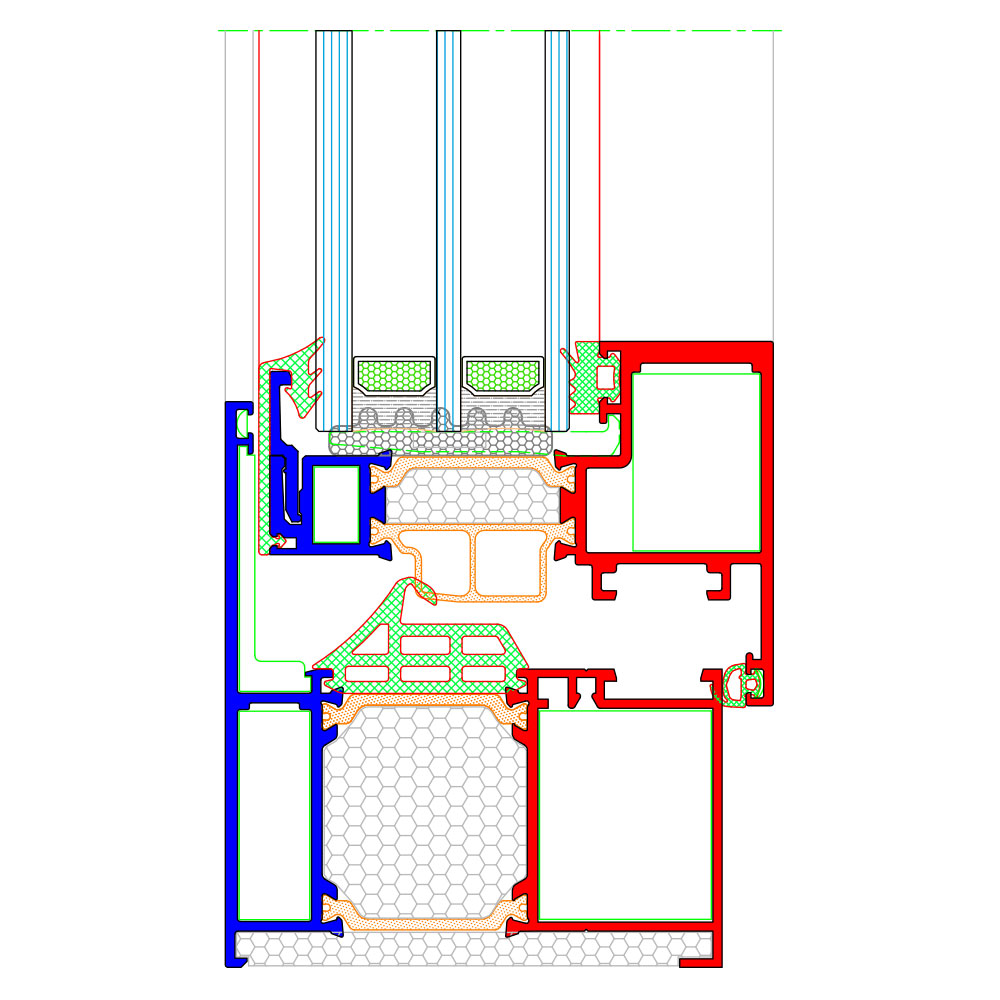

The TERMO 85 SK system is intended for the production of windows, balcony doors (opening inwards) and fixed walls. It is a profile system with a thermal break, with a basic installation frame depth of 82 mm. This system is characterized by a wing which is completely integrated into the frame from the outside thanks to its shape. This reduces the visible width of the window profile to the width of the frame only, without the width of the wing as in other window systems. The thermal break is achieved with 34 mm polyamide strips. In order to further improve the thermal characteristics of the profile, profiled XPS rods (extruded polystyrene - ʎ = 0.035 W/m2K) are installed in the profile chambers and such profiles are given the letter F. Sealing was performed with EPDM seals. Possible types of window opening: hinged, swivel, hinged-swivel. The system is compatible with facade systems. The hardware that is installed in the system is standard for the Eurogroove 15/20.

Technical characteristics of the system:

• frame depth: 82 mm
• wing depth: 85 mm
• depth of the filling: up to 44 mm
• polyamide strips: 34 mm
• max wing weight: 130 kg
• air-permeability: EN 12207 (class 4)
• watertightness: EN 12208 (class E900)
• resistance to wind: EN 12210 (class C4)
• noise protection: EN ISO 7171 (Rw=44 dB)
• antiburglary EN 1627 (RC2)
• Uw coefficient calculation: DIN EN ISO 100772 (≥1,3 Wm²/K)
• basic material: EN AW-6060
• polyamide strip material: PA66 GF25
• sealing material: EPDM
• surface treatment: DIN 17611
• quality control: DIN EN ISO 9001
